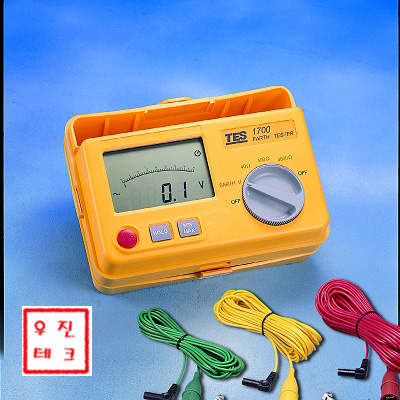

>µðÁöÅ» Á¢ÁöÀúÇ× ÃøÁ¤±â >Data hold, MAX/MIN ±â´É >Auto power off
ELECTRICAL SPECIFICATIONS :
* Measuring Range and Accuracy (at 23¡É and 45~75%RH)
Function |
Measuring range |
Accuracy |
Overload Protection |
Earth Voltage |
0 ~ 399.9V (50Hz, 60Hz) |
¡¾(1%rdg+4dgts) |
400Vrms/1 minutes |
Earth Resistance |
0 ~ 39.99§Ù |
¡¾(2%rdg+0.2§Ù) |
250Vrms/10 seconds |
0 ~ 399.9§Ù |
¡¾(2%rdg+3dgts) |
0 ~ 3999§Ù |
* Current Consumption (typical Value with battery voltage of 12V)
Range |
ON |
40§Ù/ 400§Ù/4000§Ù |
58mA |
Earth V |
22mA |
GENERAL SPECIFICATIONS :
- Safety Standard : IEC1010-1 overvoltage category III , IEC 61557
- Display : 3-3/4 digit liquid crystal display with a maximum reading of 3999
- Insulation Resistance : More than 5M§Ù between the circuit and the housing case
when measured with 500VDC
- Withstand Voltage : 3700CV AC for 1 minute between the circuit and the housing case
- Timer (Auto power off) : about 3 minutes
- Dimensions : 190(L) ¡¿ 140(W) ¡¿ 77(H)mm
- Weight : Approx. 800(with battery)
- Power Source : Eight 1.5V 01t AA Size Battery
- Over range Indication : "OL" will be shown on the LCD panel when out of
range measurement is made
- Operating Temperature and Humidity : 0¡É to 40¡É(32¢µ to 104¢µ), below 80% RH.
- Storage Temperature and Humidity : -10¡É to 60¡É(14¢µ to 140¢µ), below 70% RH.
- Accessories : Test leads Auxiliary¡æ1 Set, Auxiliary earth spikes¡æ2 Pcs,
Neck strap¡æ1 Pcs, Batteries 1.5V AA¡æ 8 Pcs, Manual |
