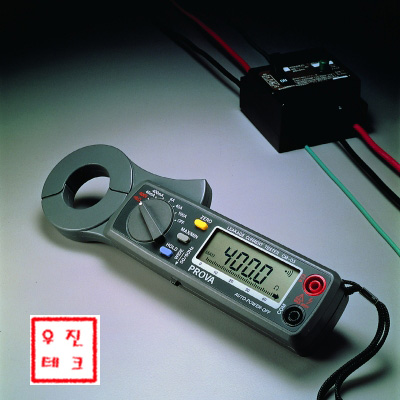

>정밀 AC 누설전류 측정기
>10㎂ 고 분해능
>jaw 30mm diameter
>5 Range(40mA, 400mA, 4A, 40A, 60A)
>Max/Min, Data Hold 기능
ELECTRICAL SPECIFICATIONS : (23℃±5℃)
■ AC Current :
|
Range |
Resolution |
Accuracy |
|
50/60Hz |
Wide(40-1KHz) |
|
40mA |
10μA |
±1.0% rdg ±3 dgts |
±2.0% rdg ±5 dgts |
|
400mA |
100μA |
±1.0% rdg ±3 dgts |
±2.0% rdg ±5 dgts |
|
4A |
1mA |
±1.0% rdg ±3 dgts |
±2.0% rdg ±5 dgts |
|
40A |
10mA |
±1.0% rdg ±3 dgts |
±2.0% rdg ±5 dgts |
|
60A(0-50A) |
100mA |
±1.5% rdg ±3 dgts |
±3.0% rdg ±5 dgts |
|
60A(50-60A)1 |
100mA |
±3.0% rdg ±5 dgts |
±3.5% rdg ±5 dgts |
1 Though the meter can display up to 400A, it is not calibrated beyond 60A
■ AC Voltage : (Input Impedance : 10MΩ)
|
Range |
Resolution |
Accuracy |
Overload Protection |
|
50/60Hz |
40 - 1KHz |
|
400V |
0.1V |
±1.5%±2dgts |
±2.0%±4dgts |
AC 800V |
■ Resistance(Ω) and Continuity : (Open Voltage 0.4V)
|
Range |
Resolution |
Accuracy |
Beeping |
Overload Protection |
|
40-400Ω |
0.1Ω |
±1.0%±2dgts |
<38.0Ω |
AC 600V |
GENERAL SPECIFICATIONS :
 Conductor Size : 30mm max. (approx.)
BatteryType : two 1.5V SUM-3AA
Display : 3-3/4 LCD with 40 seg. bargraph
Range Selection : manual
Overload Indication : left most digit blinks
Power Consumption : 10mA (approx)
Sampling Time : 2 times/sec. (display)
20 times/sec. (bargraph)
Operating Temperature : -10℃ to 50℃
Operating Humidity : less than 85% relative
Storage Temperature : -20℃ to 60℃
Storage Humidity : less than 75% relative
Dimension : 210mm (L) x 62.0mm (W) x 35.6mm (H)
Weight : 200g (battery Included)
Accessories : Carrying bag, Users manual, 1.5V battery, Test Leads |
)
